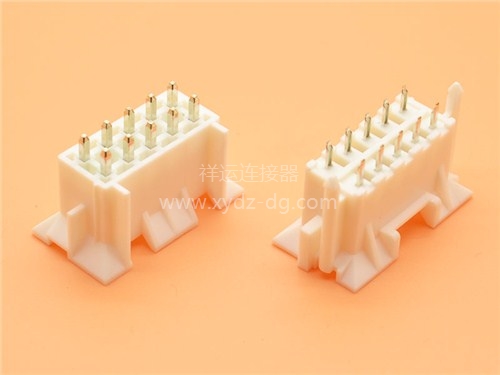

MX4.2 双排直针 空心带喇叭口 WF 东莞XYDZ Connector连接器详细说明
***SPECIFICATIONS***
Voltage rating: 600V AC, DC
Current rating: 7A, AC, DC
Withstanding Voltage: 1500V AC/minute
Insulation resistance:1000MΩ min
Temperature range: -25°C~+85°C
Contact resistance: 20mΩ max
WAFER
Part No.: W4202LTD-2xNP-XXXX
Poles : 04-24P
Housing Material: Nylon66 UL94V-2 or UL94V-0
Pin Material: Brass
Contact Area Plating: Tin-Plated or Gold-Flash
Mates With: H4201 dual row receptacle
